Tesla Model X: Air Outlet - Center Console (Remove and Replace)
Removal
Open the rear cup holder.

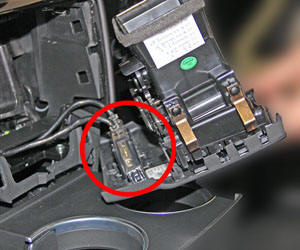

Release the clips that secure the rear air outlet trim panel,
then disconnect the USB ports from the trim panel.
Tip: Gently pull outboard on the center
console side trim panels when removing the rear air
outlet trim panel.
Remove the air outlet from the vehicle.
Installation
Installation procedure is the reverse of removal.
