Tesla Model X: Antenna - RF Filter - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Antenna - RF Filter - LH (Remove and Replace)

Remove

  1. Remove the LH liftgate side trim (refer to procedure).
  2. Disconnect the electrical connector from the antenna RF filter.

     Antenna - RF Filter - LH (Remove and Replace)

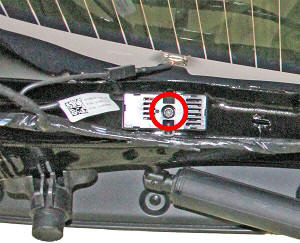

  3. Remove the screw that secures the antenna RF filter to the liftgate (torque 8 Nm).

     Antenna - RF Filter - LH (Remove and Replace)

  4. Remove the antenna RF filter from the vehicle.
Installation

Installation procedure is the reverse of removal.
