Tesla Model X: Bezel - Exterior Door Handle - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Bezel - Exterior Door Handle - Front - LH (Remove and Replace)

Removal

Open the front door.

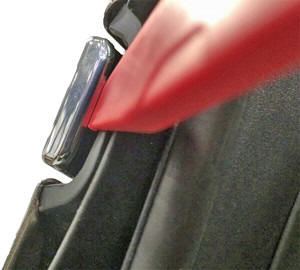

Use a plastic trim tool to slide the front exterior door handle bezel outboard and towards the rear of the vehicle.

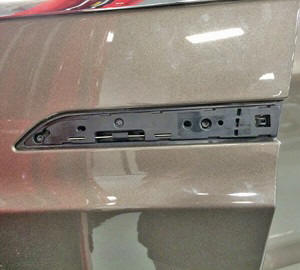

Slide the exterior door handle bezel towards the rear of the vehicle until it is removed.

Installation

Installation procedure is the reverse of removal, except for the following:

Ensure that the exterior door handle bezel is fully secured.
Ensure proper operation of the exterior door handle.
