Tesla Model X: Floor Panel - 2nd Row - Middle (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Floor Panel - 2nd Row - Middle (Remove and Replace)

Remove

Remove the 2nd row rear floor panel (refer to procedure).
Remove the foam support block between the LH and center 2nd row seats.
Move the 2nd row seats to their rearmost positions.

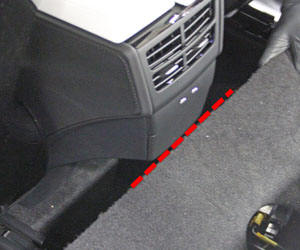

Lift the front of the middle 2nd row floor panel toward the rear of the vehicle, then pull the floor panel out of the vehicle.

Caution: Ensure that the floor panel does not scratch the center console.

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.
