Tesla Model X: Mirrors


 Adjusting Exterior Mirrors

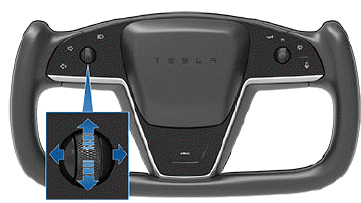

Adjust the exterior mirrors by touching Controls > Mirrors. Press the left scroll button on the steering yoke to choose whether you are adjusting the Left or Right mirror. Then use the left scro

 Folding Mirrors at Specific Locations

In addition to having mirrors fold automatically whenever you park Model X, you can fold (and unfold) mirrors anytime your driving speed is less than 31 mph (50 km/h). This is useful for parking in

 Starting and Powering Off


 Lamp - Underhood Storage Area - LH (Remove and Replace)

Remove Open the hood. Carefully fold back the trunk seal and release the front of the underhood storage carpet. Disconnect the lamp electrical connector. Use a trim tool to release the lamp from the underhood stora

 Module - 2nd Row Seat - LH (Remove and Replace)

Installation Remove the LH 2nd row seat back cover (refer to procedure). Disconnect the 2 harnesses from the module. Remove the fasteners (x3) that secure the module to the seat (torque 1 Nm)
