Tesla Model X: Technical Data

Motor

Type AC induction motor, liquid-cooled, with variable frequency drive
Rating 320 Volts
Maximum speed of large motors (rear motor on P90D) 18700 rpm
Maximum speed of small motors (front and rear motor on 90D) 18200 rpm
*Tested in accordance with ECE R85

Steering

Type Rack and pinion with electronic power steering

Variable ratio and speed sensitive

Number of turns lock to lock 2.45
Turning Circle (curb to curb)

Suspension

Front Independent. Upper wishbone with lower unequal length control arms. Co-axial Air/coil spring/telescopic damper. Sway bar.
Ride height Refer to General Information > Technical Data > Wheel Alignment.
Rear Independent. Dual upper arms and lower unequal length wishbone. Co-axial Air/coil spring/telescopic damper. Sway bar on some variants.
Hub runout 0.01 mm axial runout maximum, 0.05 mm radial runout maximu

Wheel Alignment

Front Suspension (rearmost subframe bolt, rear view, left side) Rear Suspension (front subframe bolt, front view, left side)

  1. Measure to center of bolt head
  2. Measure to center of bolt end tip
Location Front Rear
Camber -0.75 +/- 0.45 -1.50 +/- 1.00
Camber Split 0.00 +/- 0.20 Not applicable
Caster 4.20 +/- 0.50 Not applicable
Caster Split 0.00 +/- 0.20 Not applicable
Total Toe 0.00 +/- 0.15 IN 0.20 +/- 0.15
Toe Split 0.00 +/- 0.10 0.00 +/- 0.10
Suspension Bolt Height (air suspension) 258.5 +/- 5 mm 189 +/- 5 mm
Suspension Bolt Height (coil suspension) 271 mm 197 mm
Track Width (at wheel center height) 1705 mm (ref) 1730 mm (ref)

Brakes

  • Type: 4-wheel anti-lock brake system (ABS) with Electronic Brake Force Distribution, Stability Control and Electronic Traction control.
  • Calipers: Four piston fixed calipers front and rear.
Table 1. Rotor diameter
  Size (inches) Size (millimeters)
Front 13.98 in 355 mm
Rear 14.37 in 365 mm
Table 2. Front rotor thickness
  Size (inches) Size (millimeters)
New 1.26 in 32 mm
Service limit 1.18 in 30 mm
Table 3. Front rotor runout and disk thickness variation (DTV)
  (millimeters)
Lateral runout 0.050 mm
Chordal runout 0.040 mm
Disk thickness variation (DTV) 0.010 mm
Table 4. Rear rotor thickness
  Size (inches) Size (millimeters)
New 1.10 in 28 mm
Service limit 1.02 in 26 mm
Table 5. Rear rotor runout and disk thickness variation (DTV)
  (millimeters)
Lateral runout 0.050 mm
Chordal runout 0.040 mm
Disk thickness variation (DTV) 0.010 mm
Table 6. Front brake pad thickness (excluding backing plate)
  Size (inches) Size (millimeters)
New 0.354 in 9.0 mm
Service limit 0.078 in 2.0 mm
Table 7. Rear brake pad thickness (excluding backing plate)
  Size (inches) Size (millimeters)
New 0.315 in 8.0 mm
Service limit 0.078 in 2.0 mm
Table 8. Electronic parking brake (EPB) brake pad thickness (excluding backing plate)
  Size (inches) Size (millimeters)
Parking brake (EPB) Electronic calipers. Self adjusting for pad wear.
New 0.216 in 5.5 mm
Service limit 0.039 in 1.0 mm

Wheels

Lug nut torque: 175 Nm (129 lb. ft.)

  Size
20" (Front) 9.0 x 20
20" (Rear) 10.0 x 20
22'' (Front) 9.0 x 22
22'' (Rear) 10.0 x 22

Tire Pressures

Tire Pressures - All regions

Tire Pressure
20" Michelin Latitude Sport 3 42 psi (290 kPa)
20" Continental ContiCrossContact LX Sport 45 psi (310 kPa)
22" 42 psi (290 kPa)

Fuse Locations

Refer to the Model X Electrical Information page and click the circuit diagram link that is appropriate for the vehicle's date of manufacture.

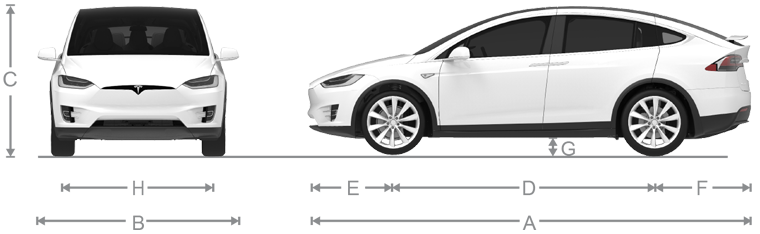

Exterior Dimensions

Exterior Dimensions

A Overall Length 199 in 5052 mm
B Overall Width (including mirrors)

Overall Width (including folded mirrors

Overall Width (excluding mirrors)

89 in

82 in

79 in

2272 mm

2017 mm

1999 mm

C Overall Height 66 in 1684 mm
D Wheel Base 117 in 2965 mm
E Overhang - Front 39 in 989 mm
F Overhang - Rear 43 in 1098 mm
G Ground Clearance:

Standard, with skis

Standard, without skis

Very high, with skis

Very high, without skis





7 in

7 in

8 in

9 in





171 mm

183 mm

211 mm

223 mm

H Track - Front

Track - Rear

67 in

68 in

1711 mm

1723 mm
