Tesla Model X: Toe Link Assembly - Rear - LH (Remove and Replace)

Removal

1. Remove the rear subframe assembly (refer to procedure).

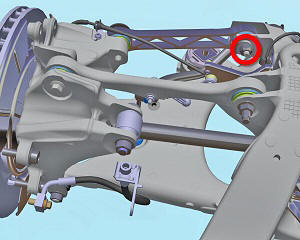

2. Remove the nut and bolt that secure the toe link to the knuckle (torque 130 Nm).



3. Mark a witness line from the cam bolt to the subframe to aid installation.

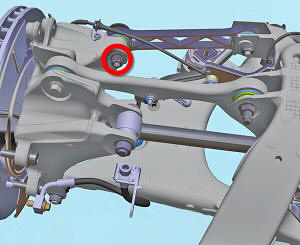

4. Remove the nut and bolt that secure the toe link to the subframe (torque 80 Nm).



5. Remove the toe link from the rear subframe assembly.

Installation procedure is the reverse of removal.
