Tesla Model X: Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace)

Removal

Rotate the sun visor to the forward position.

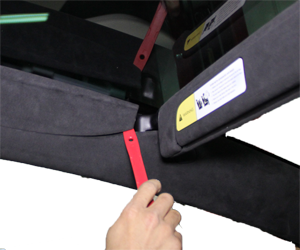

Use a trim tool to release the front clip that secures the sun visor bezel.
Use a trim tool to continue to release the clips that secure the sun visor bezel.

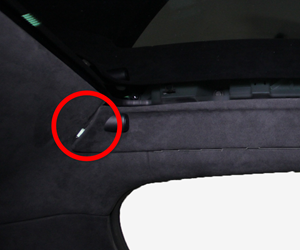

Release the rear clip that secures the sun visor bezel.
Slide the sun visor bezel forward and then remove the sun visor from the vehicle.

Installation

Installation procedure is the reverse of removal.
