Tesla Model X: Assembly - Mesh Grille - Defrost (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Instrument Panels / Assembly - Mesh Grille - Defrost (Remove and Replace)

Remove

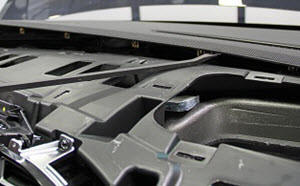

Remove the top pad (refer to procedure).
Remove the A-Pillar upper trim panel (refer to procedure).

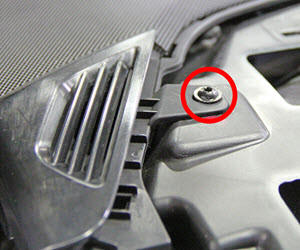

On each side of the vehicle, release the bolt that secures the grille to the IP carrier (torque 2.3 Nm).
Release the clips (x10) that secure the mesh grille to the IP carrier, but do not fully remove the grille at this time.

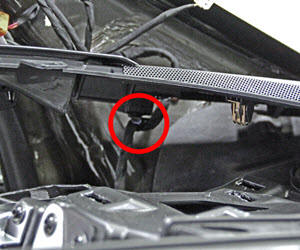

On each side of the vehicle, release the A-pillar harness from the underside of the grille.
Slightly lift up the rear of the grille, pull it towards the rear of the vehicle, then lift it straight up to remove it.

Installation

Installation procedure is the reverse of removal.
