Tesla Model X: Bracket - Headlamp - Inner - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Bracket - Headlamp - Inner - LH (Remove and Replace)

Removal

  1. Remove the headlamp assembly (refer to procedure).

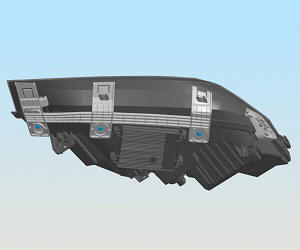

  2. Remove the screws (x3) that secure the inner bracket to the headlamp (torque 1.0 Nm).

    Bracket - Headlamp - Inner - LH (Remove and Replace)

  3. Remove the inner bracket from the headlamp.
Installation

Installation procedure is the reverse of removal.
