Tesla Model X: Brightwork - Upper - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Brightwork - Upper - Rear - LH (Remove and Replace)


  1. Remove the C-Pillar applique (refer to procedure).

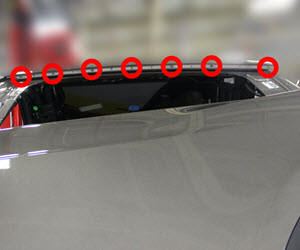

  2. Remove the fasteners that secure the upper brightwork (torque 4 Nm).

     Brightwork - Upper - Rear - LH (Remove and Replace)


Installation procedure is the reverse of removal.
