Tesla Model X: Closeout Panel - Door - Front - LH (Remove and Install)

Tesla Model X 2015-2024 Service Manual / Closures / Closeout Panel - Door - Front - LH (Remove and Install)

Removal

Remove the front door trim panel (refer to procedure).

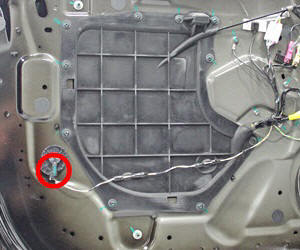

Remove the bluetooth sensor from the closeout panel.
Disconnect the harness from the airbag sensor.

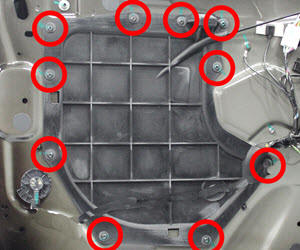

Remove the screws (x10) that secure the closeout panel to the door (torque 1.8 Nm).
Remove the closeout panel from the vehicle.

Installation

Installation procedure is the reverse of removal.
