Tesla Model X: Seal - Primary - Front Door - LH (Remove and Replace)

Tesla Model X 2015-2026 Service Manual / Closures / Seal - Primary - Front Door - LH (Remove and Replace)

Removal

Open the front door.

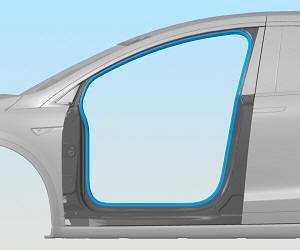

Carefully release the seal, starting from the rocker panel and working towards the upper section of the seal.
Note: Components have been removed in this graphic to aid clarity.
Remove the seal from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation. Ensure that the lip of the seal is seated properly.

Tip: Use a silicone based lubricant to aid installation, if necessary.
