Tesla Model X: Seal - Door Front Outer Belt - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Seal - Door Front Outer Belt - LH (Remove and Replace)

Remove

Lower the front and rear LH windows.
Open the front door.
Partially open the rear door.

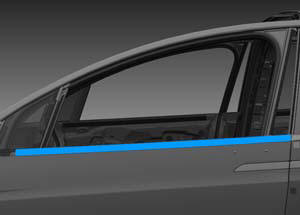

Use a plastic trim tool to release the outer belt seal.
Remove the outer belt seal from the vehicle.

Installation

Installation procedure is the reverse of removal.
