Tesla Model X: Seal - Belt - Door Inner - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Seal - Belt - Door Inner - Rear - LH (Remove and Replace)

Removal

Remove the LH rear door trim panel (refer to procedure).

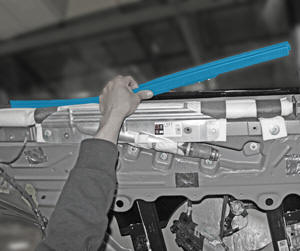

Carefully pull up on the inner belt seal to release it from the door. Caution: Take care not to damage or disturb the 2nd row curtain air bag.
Remove the inner belt seal from the vehicle.

Installation

Installation procedure is the reverse of removal.
