Tesla Model X: Seal - Door - Rear - Upper - LH (Remove and Replace)

Tesla Model X 2015-2023 Service Manual / Closures / Seal - Door - Rear - Upper - LH (Remove and Replace)

Removal

  1. Remove the upper rear door glass (refer to procedure).
  2. Remove the seal from the upper rear door glass.

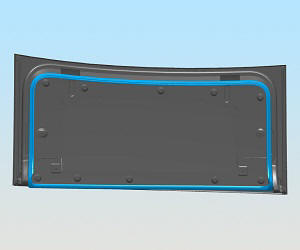

    Seal - Door - Rear - Upper - LH (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following:

  1. Remove any remaining residue and clean the affected area with alcohol.
  2. When installing the seal, ensure that the notches in the seal align with the hinges on the door.
