Tesla Model X: Antenna - Passive Entry - Rocker - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Antenna - Passive Entry - Rocker - LH (Remove and Replace)

Remove

  1. Remove the rocker panel molding (refer to procedure).
  2. Disconnect 12V power (refer to procedure).

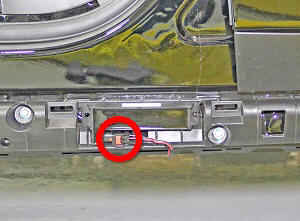

  3. Disconnect the electrical connector from the antenna.

     Antenna - Passive Entry - Rocker - LH (Remove and Replace)

  4. Use a trim tool to carefully release the antenna from the rocker panel carrier.
Installation

Installation procedure is the reverse of removal, except for the following:

  1. Clean the mounting surface on the rocker panel carrier with alcohol wipes.
  2. Apply firm pressure to the antenna for at least 15 seconds to ensure that the adhesive is properly applied.
