Tesla Model X: Siren - Battery Backed (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Siren - Battery Backed (Remove and Replace)

Removal

Remove the front fascia assembly (refer to procedure).

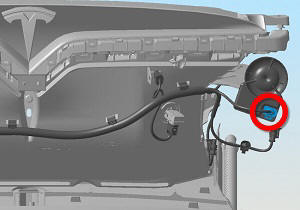

Disconnect the electrical connector from the front of the siren.
Note: Components have been removed in this graphic to aid clarity.

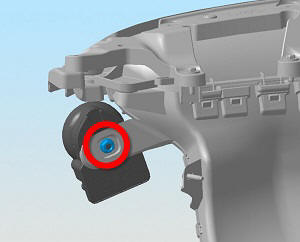

Remove the nut that secures the rear of the siren to the bracket on the LH side of the front duct (torque 8 Nm).
Note: Components have been removed in this graphic to aid clarity.
Remove the siren from the vehicle.

Installation

Installation procedure is the reverse of removal.
