Tesla Model X: Antenna - Passive Entry - Center Console (Remove and Replace)

Removal

1. Remove the center console from the vehicle (refer to procedure).

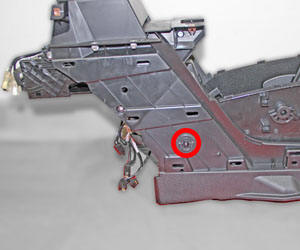

2. On each side of the console, release the fastener that secures the console bracket to the console (torque 2.5 Nm).



3. Lift the console bracket out of the console.
4. Disconnect the harness from the antenna.

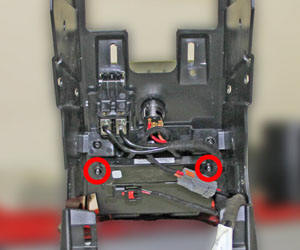

5. Release the screws that secure the antenna to the console (torque 1 Nm).



Installation procedure is the reverse of removal.
