Tesla Model X: Seal - Liftgate (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Seal - Liftgate (Remove and Replace)

Removal

Open the liftgate.

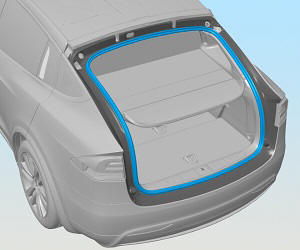

Carefully release the seal from the liftgate.
Note: Components have been removed in this graphic to aid clarity.
Remove the seal from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation. Ensure that the lip of the seal is seated properly.

Tip: Use a silicone based lubricant to aid installation, if necessary.
