Tesla Model X: Cover - Seat Back - Driver's (Remove and Replace)

Tesla Model X 2015-2023 Service Manual / Seats / Cover - Seat Back - Driver's (Remove and Replace)

Removal

  1. Move the driver's seat fully forward.
  2. Starting from the top of the seat back cover, use a trim tool to release the clips (x12) that secure the seat back cover.

    Caution: The carpet is still attached to the bottom of the seat back cover.

    Caution: Take care not to damage component(s).

    Cover - Seat Back - Driver's (Remove and Replace)

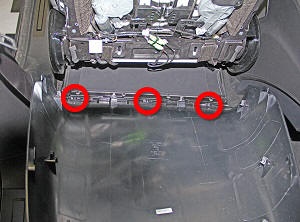

  3. Release the clips (x3) that secure the carpet to the bottom of the seat back cover.

    Cover - Seat Back - Driver's (Remove and Replace)

  4. Remove the seat back cover. Place the seat back cover on a soft, clean surface.

    Cover - Seat Back - Driver's (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.

Caution: Take care not to scratch or damage the outside of the seat back cover during handling.

  1. Ensure that the foam piece did not fall from the rear of the headrest.

    Foam highlighted
    Foam highlighted

  2. Install the seat back cover working from the bottom to the top of the seat.
  3. Ensure that the seat back cover is fully secured to the seat.
  4. Return the seat to its original position.
