Tesla Model X: Fascia Bracket - Center (Remove and Replace)
Removal
Remove the upper grille bright trim (refer to procedure).

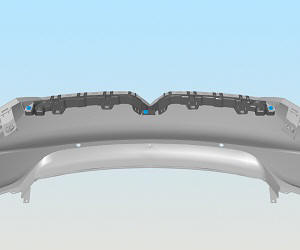

Remove the bolts (x3) that secure the center fascia bracket to
the front fascia (torque 4 Nm).
Note: Components have been removed in this graphic to aid
clarity.
Use a trim tool to release the tabs that secure the center
fascia bracket to the front fascia.
Release the center fascia bracket from the front fascia.
Installation Installation procedure is the reverse of removal.
