Tesla Model X: Identification Labels

Vehicle Identification Number

You can find the VIN at the following locations:

  • Touch Controls > Software.

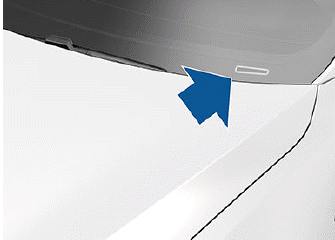

  • Stamped on a plate located at the top of the dashboard. Can be seen by looking through the windshield on the driver's side of the vehicle.

Identification Labels

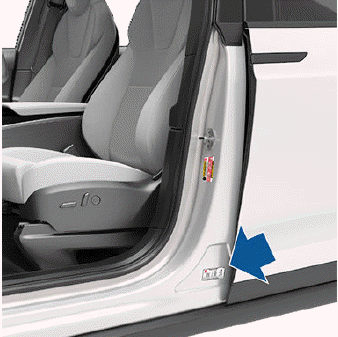

  • Printed on the Vehicle Certification label, located on the door pillar. Can be seen when the driver's door is open.

Identification Labels

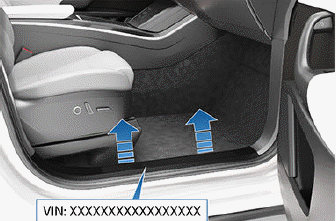

  • The VIN is stamped on the chassis and can be seen by removing the sill panel on the front passenger door by gently prying it upward using a flat-bladed tool.

CAUTION: Removing the sill panel to view the VIN is not recommended because damage is likely to occur. The panel is held in place with fragile clips that break easily. Damage caused by removing the sill panel is not covered by the warranty.

Identification Labels

Emission Control Label

The emission control label is located on the opening face of the liftgate.

NOTE: For vehicles with a model year of 2022 or newer, the emission control label is now located on the inside of the front hood and may not match the label shown.

Identification Labels


     Vehicle Loading

     Vehicle Labeling

    It is important to understand your vehicle's original tire sizes and pressures, and the GVWR (Gross Vehicle Weight Rating) and GAWR (Gross Axle Weight Rating). This information can be found on two

     Vehicle Certification Label

    The Vehicle Certification label provides: GVWR - Gross Vehicle Weight Rating. The maximum allowable total mass of Model X. This is calculated as the weight of Model X equipped with the heaviest
