Tesla Model X: Front Oil Seal - Differential to Halfshaft Assembly - RH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Front Drive Unit / Front Oil Seal - Differential to Halfshaft Assembly - RH (Remove and Replace)

Special tool(s) required for this procedure:

Part Number	Description
1051509-00-A	Output Seal Installation Tool
1052583-00-A	Seal Puller Note: Technicians may use this tool or equivalent.

Removal

Remove the jackshaft assembly (refer to procedure).

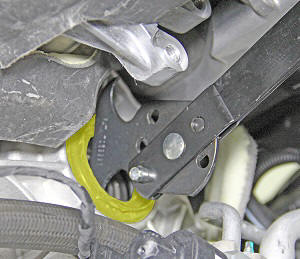

Use the seal puller to remove the oil seal from the differential casing.
Caution: Take care not to damage component(s).

Installation

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation.

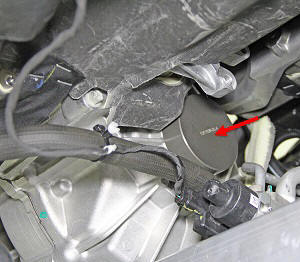

Use the output seal installation tool to install the oil seal in the differential casing. Caution: Take care not to damage component(s).
Ensure that the seal is seated correctly in the differential casing.
