Tesla Model X: Support - Parcel Shelf - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Support - Parcel Shelf - LH (Remove and Replace)

Removal

  1. Remove the upper C-Pillar trim panel (refer to procedure).

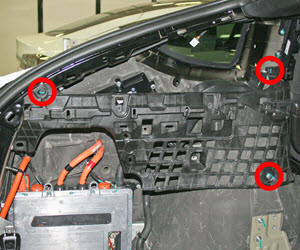

  2. Release the push clips (x2) and nut (x1) that secure the parcel shelf support to the body (torque 1.25 Nm).

     Support - Parcel Shelf - LH (Remove and Replace)

  3. Remove the parcel shelf support from the vehicle.
Installation

Installation procedure is the reverse of removal.
