Tesla Model X: Racetrack Trim - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Racetrack Trim - Front - LH (Remove and Replace)

Removal

Remove the headliner (refer to procedure).

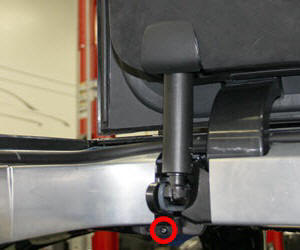

Remove the screw that secures the front racetrack trim (torque 2.5 Nm).
Release the clips that secure the front racetrack trim.
Remove the front racetrack trim from the vehicle.

Installation

Installation procedure is the reverse of removal.
