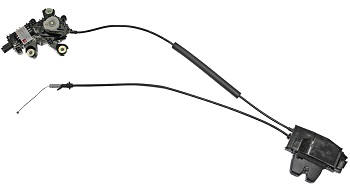

Tesla Model X: Latch and Cinch Motor - Door - Rear - LH (Remove and Replace)

Removal

1. Remove the closeout panel (refer to procedure).

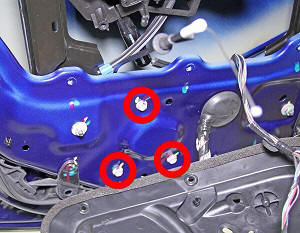

2. Remove the bolts (x3) that secure the cinch motor to the door (torque 3 Nm).



3. Remove the rear speaker (refer to procedure).

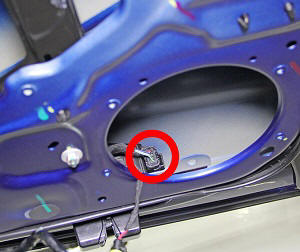

4. Disconnect the electrical connector from the door latch.

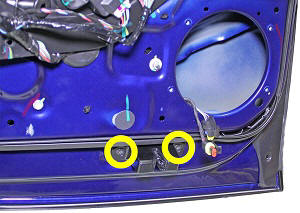

5. Remove the screws (x2) that secure the door latch cover (torque 22 Nm). Remove the door latch cover.

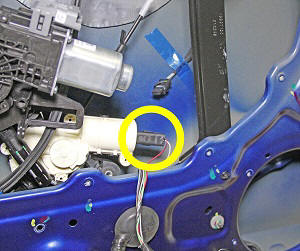

6. Lift the cinch motor and disconnect the electrical connector.



7. Remove the rear door latch and cinch motor assembly from the vehicle.



Installation procedure is the reverse of removal.
