Tesla Model X: SD Card - Media Control Unit (Remove and Replace)
Tesla Model X 2015-2024 Service Manual / Infotainment / SD Card - Media Control Unit (Remove and Replace)
Removal
- Remove the MCU/touch screen (refer to procedure).
- Working from the top of the MCU/touch screen, carefully use a
plastic trim tool to press the SD card retaining tab away from the
socket. The SD card ejects from the socket.
Caution: Take care not to damage component(s).

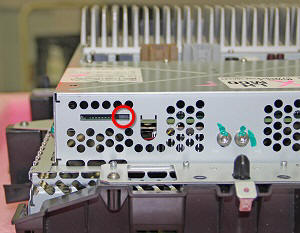

Note: The following image shows the SD card removed
for clarity.
- Remove the SD card from the MCU/touchscreen.
Installation procedure is the reverse of removal, except for the following:
- Insert the SD card with the pins facing towards the touchscreen.
- Push the SD card into the socket until it snaps into place.
