Tesla Model X: Subwoofer Assembly (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Subwoofer Assembly (Remove and Replace)

Removal

Remove the RH parcel shelf support (refer to procedure).

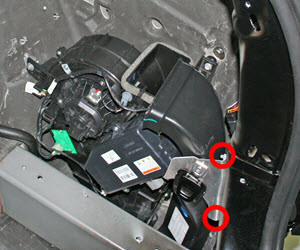

Release the bolts (x2) that secure the rear HVAC duct bracket to the body (torque 9 Nm).
Remove the rear HVAC duct.
Disconnect the electrical connector from the subwoofer.
Release the nut (x1) and bolts (x2) that secure the subwoofer (torque 5 Nm).
Remove the subwoofer from the vehicle.

Installation

Installation procedure is the reverse of removal.
