Tesla Model X: Tweeter - A Pillar - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Tweeter - A Pillar - LH (Remove and Replace)

Remove

Remove the upper A-Pillar trim (refer to procedure).

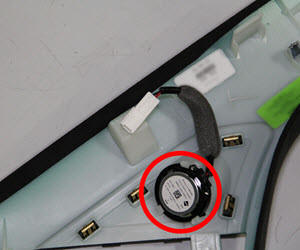

Remove the tweeter from the trim panel.

Installation

Installation procedure is the reverse of removal.
