Tesla Model X: Applique - Front Quarter - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Applique - Front Quarter - LH (Remove and Replace)

Removal

  1. Remove the front upper brightwork (refer to procedure).

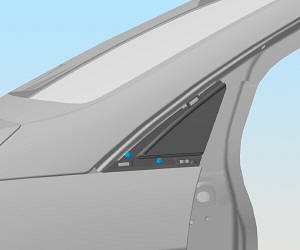

  2. Remove the screws (x2) that secure the front quarter applique to the vehicle (torque 1 Nm).

    Note: Components have been removed in this graphic to aid clarity.

    Applique - Front Quarter - LH (Remove and Replace)

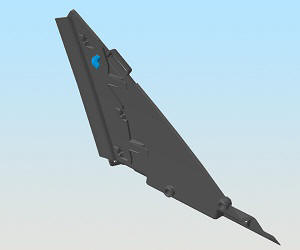

  3. Move the applique upwards and towards the rear of the vehicle to release the tab on the inboard side of the applique from the slot in the body of the vehicle.

    Applique - Front Quarter - LH (Remove and Replace)

  4. Remove the front quarter applique from the vehicle.
Installation

Installation procedure is the reverse of removal.
