Tesla Model X: Buckle Assembly - 1st Row - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Safety and Restraint / Buckle Assembly - 1st Row - LH (Remove and Replace)

Remove

  1. Remove the LH front seat back cover (refer to procedure).
  2. Fully raise the LH front seat and move it to its rearmost position.
  3. Remove the screw (x1) that secures the inner side cover to the seat assembly.
  4. Remove the inner side cover.
  5. Disconnect the seat belt buckle electrical connector.

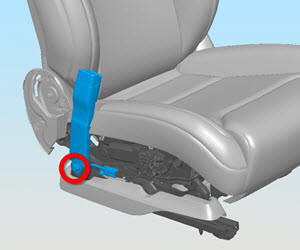

  6. Remove and discard the bolt that secures the LH seat belt buckle assembly (torque 9 Nm).

    Buckle Assembly - 1st Row - LH (Remove and Replace)

  7. Remove the seat belt buckle assembly from the seat assembly.
Installation

Installation procedure is the reverse of removal.
