Tesla Model X: Charge Port - Manual Release of Cable

Tesla Model X 2015-2024 Service Manual / High Voltage System / Charge Port - Manual Release of Cable

Warning: Only technicians who have been trained in High Voltage Awareness are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 00 (500V) must be worn any time a high voltage cable is handled. Refer to Tech Note TN-15-92-003, "High Voltage Awareness Care Points" for additional safety information. Release Cable

  1. Open the liftgate.
  2. Remove the load floor.
  3. Remove the mid C-Pillar trim panel (refer to procedure).
  4. Partially release the LH rear trunk carpet assembly. Caution: Take care not to damage component(s).
  5. Open the NVH padding access flap.

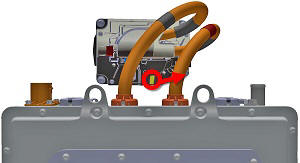

    Note: Components have been removed in this graphic to aid clarity.

    . Charge Port - Manual Release of Cable

  6. Press the release lever towards the front of the vehicle and hold it in place while an assistant removes the charge cable from the charge port. Once the charge cable is removed, release the lever.

    . Charge Port - Manual Release of Cable

  7. Close the NVH padding access flap.
  8. Reinstall all components that were removed for access.
