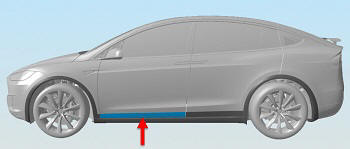

Tesla Model X: Cladding - Door - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Cladding - Door - Front - LH (Remove and Replace)

Special tool required for this procedure:

Supplier Part Number Description
Tesla 223-MR05029-TSL Ergonomic Silicone Seam Roller
Removal
  1. Open the front door.

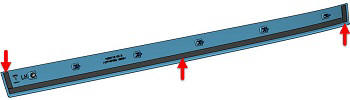

  2. Working from the rear, use a trim tool to release the clips (x6) and double sided tape that secure the cladding to the front door. Tip: After the rearmost clip is released, close the front door and carefully pull the cladding away from the door to release the remaining clips (x5).

     Cladding - Door - Front - LH (Remove and Replace)

  3. Remove any broken clips from the door.
  4. Remove the front door cladding from the vehicle.
Installation

Caution: Replace any broken clips.

  1. Clean any remaining double sided tape residue.
  2. Apply new tape if reinstalling the cladding. Remove the tape backing.

     Cladding - Door - Front - LH (Remove and Replace)

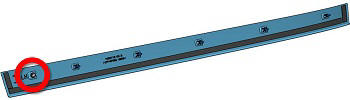

  3. Install the rearmost clip first then install the remaining clips (x5) working towards the front of the door. Caution: Failure to install the rearmost clip first can result in poor seating of the cladding.

     Cladding - Door - Front - LH (Remove and Replace)

  4. Press firmly on the cladding using a silicone seam roller to completely seal the double sided tape.
