Tesla Model X: Cladding - Door - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Cladding - Door - Rear - LH (Remove and Replace)

Special tool required for this procedure:

Supplier Part Number Description
Tesla 223-MR05029-TSL Ergonomic Silicone Seam Roller
Removal
  1. Remove the rear door closeout panel (refer to procedure).

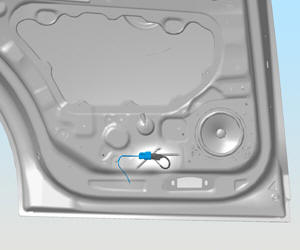

  2. Disconnect the cladding sensor connector from the harness inside the door.

     Cladding - Door - Rear - LH (Remove and Replace)

  3. Use a trim tool to release the clips (x4) that secure the cladding to the rear door.

     Cladding - Door - Rear - LH (Remove and Replace)

  4. Remove the rear door cladding from the vehicle.
Installation

Installation procedure is the reverse of removal, except for the following:

  1. Clean the affected area on the vehicle with alcohol wipes.

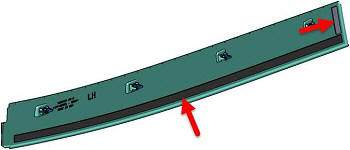

  2. Apply new tape if reinstalling the cladding.
  3. Remove the tape backing.

     Cladding - Door - Rear - LH (Remove and Replace)

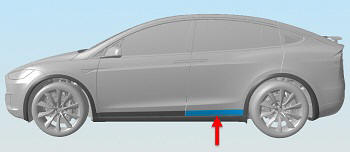

  4. Install the rearmost clip first, then install the remaining clips (x3), working towards the front of the door.

Caution: Failure to install the rearmost clip first can result in poor seating of the cladding.
