Tesla Model X: Dimensions

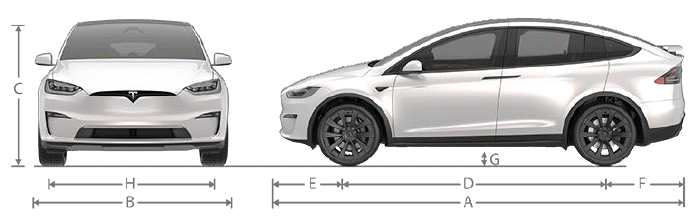

Exterior Dimensions

Dimensions

Dimensions

*Values are approximate. Dimensions can vary depending on a vehicle's options and various other factors.

**Based on 20" wheels with Medium suspension

CAUTION: Depending on configuration (such as suspension height or wheel selection), your vehicle's liftgate can open up to approximately 8 feet (2.5 meters) high. See Adjusting Liftgate Opening Height to adjust the liftgate height and prevent it from coming into contact with low ceilings or other objects.

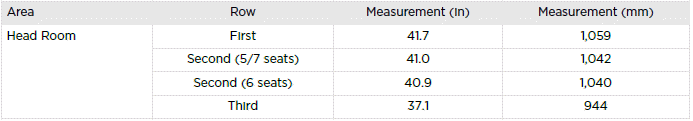

Interior Dimensions

Dimensions

Dimensions

Cargo Volume

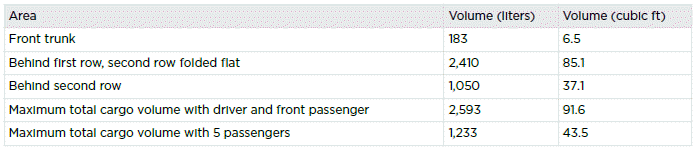

5-Seater Cargo Volumes

Dimensions

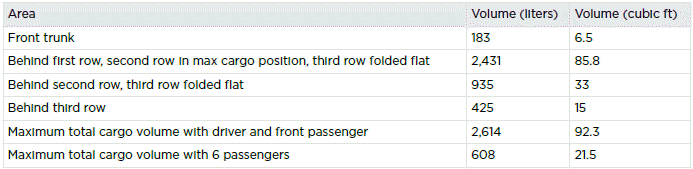

6-Seater Cargo Volumes

Dimensions

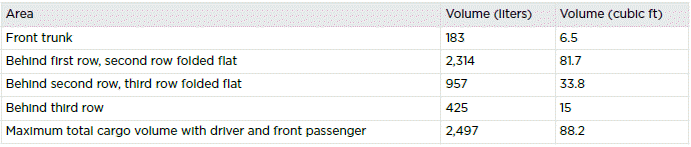

7-Seater Cargo Volumes

Dimensions

Dimensions

Subsystems

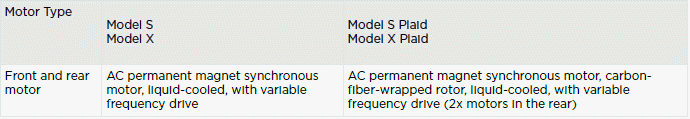

Motor Type

Subsystems

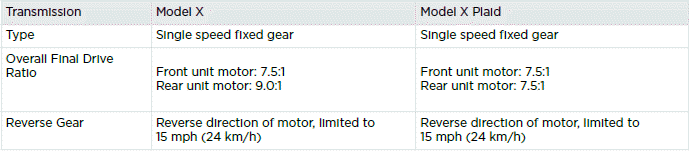

Transmission

Subsystems

Steering

Subsystems

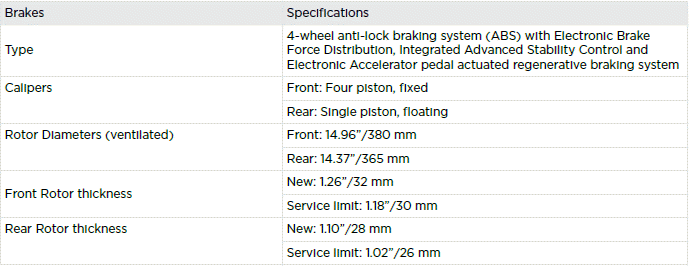

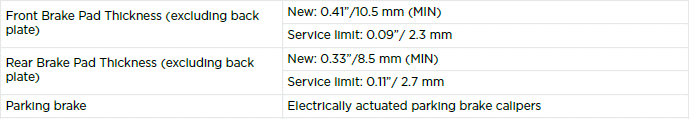

Brakes

Subsystems

Subsystems

Suspension

Subsystems

Battery - Low Voltage

Subsystems

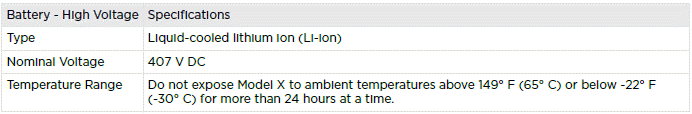

Battery - High Voltage

Subsystems
