Tesla Model X: Disconnect 12V Power

Disconnect

Note: After disconnecting 12V power, the rear doors and liftgate are inoperable. Open any necessary closures before proceeding.

  1. Turn off the climate control system.
  2. Fully open the driver's window.
  3. Remove the HEPA filter housing (refer to procedure).
Warning: If the 12V power supply is disconnected, do not attempt to open the front doors with door glass in closed position. Failure to follow this instruction could result in door glass shatter.

Note: Before disconnecting the 12V power supply, ensure that the driver's door window is fully open. Failure to follow this instruction could result in vehicle lockout.

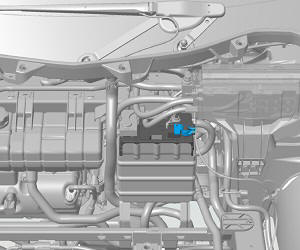

  1. Disconnect the 12V battery ground connection (torque 10 Nm).

    Disconnect 12V Power

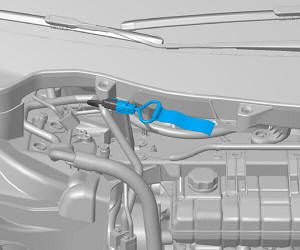

  2. Disconnect the first responder loop.

    Caution: Do not cut the first responder loop.

    Disconnect 12V Power

  3. Wait at least 2 minutes for all electrical circuits to fully discharge.

Warning: Before working on any high voltage components, perform the Vehicle Electrical Isolation Procedure (refer to procedure).

Connect

Note: Connect is reverse of disconnect, except for the following: If a rear door was open while 12V was disconnected, recalibrate the rear door:

  1. Connect a laptop with Toolbox to the vehicle.
  2. Open Panels > Body Controls > Falcon Door Calibration.
  3. Follow the onscreen instructions.
