Tesla Model X: Sensor - Light/Rain (Remove and Replace)

Removal

1. Remove the forward facing camera (refer to procedure).

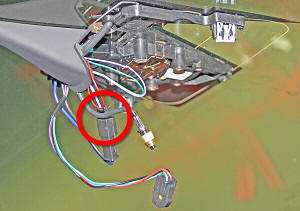

2. Disconnect the light/rain sensor electrical connector.



3. On each side of the light/rain sensor, unlatch the spring clip from the plastic tab on the windshield bracket.



4. Remove the light/rain sensor from the vehicle.

Installation procedure is the reverse of removal, except for the following:

Note: The light/rain sensor is a one time use component. If the rain/light sensor is removed from the windshield, a new sensor must be installed.

Note: Clean the affected areas before installation.

Caution: Do not touch the adhesive on the new rain/light sensor.

1. Test the rain sensor for proper operation:
   1. Sit in the driver's seat.
   2. Set the wipers to the 1st or 2nd intermittent position.
   3. Have an assistant spray the windshield with water.
   4. Check that the wipers sweep when water is sprayed in front of the sensor.
2. Test the light sensor for proper operation:
   1. Sit in the driver's seat.
   2. Have an assistant shine a bright light on the sensor.
   3. Check that the touchscreen changes from night to day brightness.
3. Calibrate the forward facing camera (refer to procedure).
