Tesla Model X: Nose Badge - Front (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Nose Badge - Front (Remove and Replace)

Remove

  1. Remove the front underhood apron (refer to procedure).

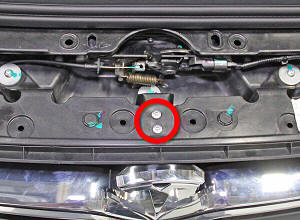

  2. Remove the bolts (x2) that secure the front nose badge to the front ducting (torque 5 Nm).

     Nose Badge - Front (Remove and Replace)

  3. Remove the nose badge from the vehicle.

     Nose Badge - Front (Remove and Replace)

Installation

Installation procedure is the reverse of removal.
