Tesla Model X: Door Mirror Assembly - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Door Mirror Assembly - LH (Remove and Replace)

Removal

  1. Remove the front door fixed glass (refer to procedure).

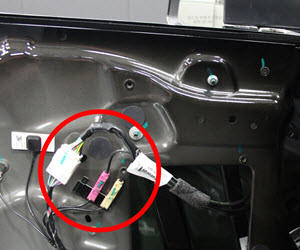

  2. Disconnect the mirror harnesses (x3).

     Door Mirror Assembly - LH (Remove and Replace)

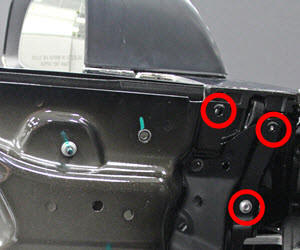

  3. Remove the screws (x3) that secure the mirror to the door (torque 9 Nm).

     Door Mirror Assembly - LH (Remove and Replace)

  4. Remove the mirror from the vehicle.
Installation

Installation procedure is the reverse of removal.
