Tesla Model X: Floor Panel - 2nd Row - Front (Remove and Replace)
Removal
Remove the LH and RH front sill trim panels (refer to
procedure).
Remove the inboard seat riser (refer to procedure).
Remove the LH and RH outboard seat risers (refer to procedure).
Note: The following step requires an assistant.

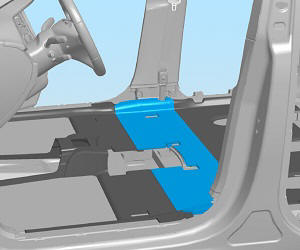

Remove the front 2nd row floor panel from the vehicle.

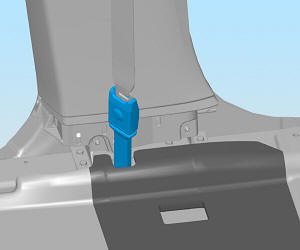

Note: While lifting the floor panel, carefully
twist the seat belt pre-tensioner covers to align with the
notches in the floor panel.
Caution: Take care not to damage component(s).
Installation
Installation procedure is the reverse of removal.
