Tesla Model X: Lamp - Underhood Storage Area - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Lamp - Underhood Storage Area - LH (Remove and Replace)

Remove

  1. Open the hood.
  2. Carefully fold back the trunk seal and release the front of the underhood storage carpet.
  3. Disconnect the lamp electrical connector.

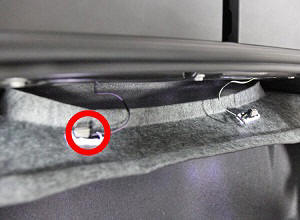

    Lamp - Underhood Storage Area - LH (Remove and Replace)

  4. Use a trim tool to release the lamp from the underhood storage carpet.
  5. Remove the lamp from the vehicle.
Installation

Installation procedure is the reverse of removal.
