Tesla Model X: Module - TPMS (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Wheels and Tires / Module - TPMS (Remove and Replace)

Removal

Remove the headliner (refer to procedure).

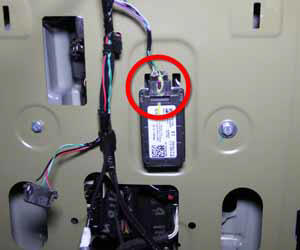

Disconnect the harness from the TPMS module.
Slide the TPMS module toward the front of the vehicle to release it from the spine closing plate.
Remove the TPMS module from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Perform the TPMS sensor ID learn procedure (refer to procedure).
Perform a road test.
