Tesla Model X: Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Brakes / Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

Removal

  1. Remove the rear wheel (refer to procedure).

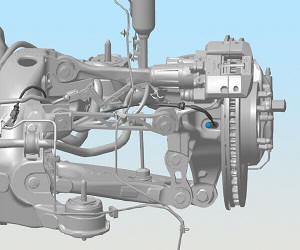

  2. Remove the bolt that secures the wheel speed sensor to the knuckle (torque 8 Nm).

    Note: Components have been removed in this graphic to aid clarity.

    Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

  3. Remove the mid aero shield (refer to procedure).

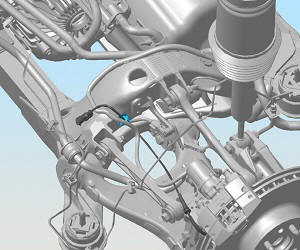

  4. Disconnect the wheel speed sensor electrical connector. Note: Components have been removed in this graphic to aid clarity.

    Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

  5. Release the fir tree clip that secures the wheel speed sensor to the rear subframe. Note: Components have been removed in this graphic to aid clarity.

    Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

  6. Release the wheel speed sensor from the bracket on the knuckle.

    Note: Components have been removed in this graphic to aid clarity.

    Sensor - Wheel Speed - ABS - Rear - LH (Remove and Replace)

  7. Remove the wheel speed sensor from the vehicle.
Installation

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation.
