Tesla Model X: Grille - Speaker - Liftgate (Remove and Replace)
Removal

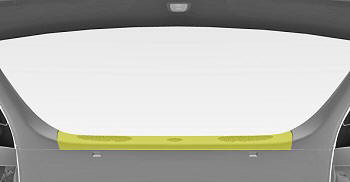

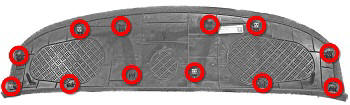

Use a trim tool to release the clips (x12) that secure the
speaker grille to the top of the middle liftgate trim.
Tip: If necessary, open the liftgate and set
it to a comfortable working height. Note: Components have been removed in
this graphic to aid clarity.
Remove the liftgate speaker grille from the vehicle.
Caution: Replace any broken clips.
Installation
Installation procedure is the reverse of removal.
