Tesla Model X: Motor - Active Spoiler (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Motor - Active Spoiler (Remove and Replace)

Removal

  1. Remove the LH and RH active spoiler torque rods (refer to procedure).

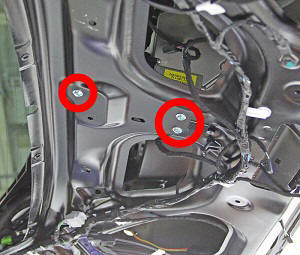

  2. Remove the bolts (x3) that secure the active spoiler motor to the liftgate (torque 6 Nm).

     Motor - Active Spoiler (Remove and Replace)

  3. Manuever the active spoiler motor out from the liftgate and remove it from the vehicle.
Installation Installation procedure is the reverse of removal.
