Tesla Model X: Sensor - Wheel Speed - ABS - Front - LH (Remove and Replace)

Warning: If the vehicle has air suspension, activate "Jack" mode on the touchscreen before raising and supporting the vehicle. Removal

1. Remove the HEPA filter housing (refer to procedure).
2. Remove the front LH wheel (refer to procedure).
3. Release the rearmost push clips (x7) that secure the wheel arch liner.



4. Remove the rear nut that secures the wheel arch liner to the stud on the chassis (torque 6 Nm).

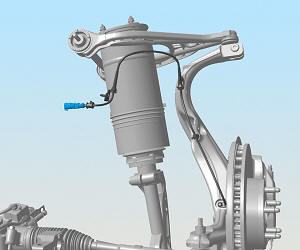

5. Move the rear portion of the wheel arch liner forward for access.
6. Release the fir tree clip that secures the wheel speed sensor harness to the body of the vehicle.
7. Disconnect the wheel speed sensor electrical connector.

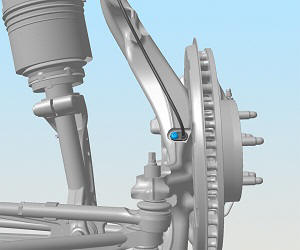

8. Release the wheel speed sensor from the bracket on the knuckle and bracket on the body of the vehicle.



9. Release the fir tree clip that secures the wheel speed sensor to the knuckle.



10. Remove the bolt that secures the wheel speed sensor to the knuckle (torque 8 Nm).



11. Remove the wheel speed sensor from the vehicle.

Installation procedure is the reverse of removal.
