Tesla Model X: Motor - Seat Track - 2nd Row - LH (Remove and Replace)

Removal

1. Remove the LH outer seat track (refer to procedure).

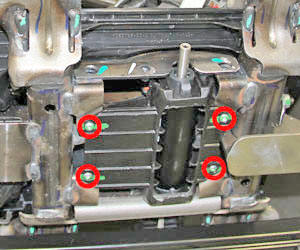

2. Remove the fasteners that secure the motor to the side of the seat (torque 29 Nm).

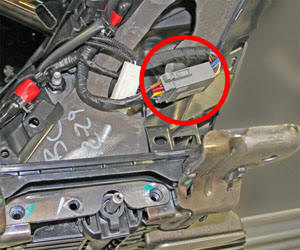

3. Disconnect the seat motor harness.

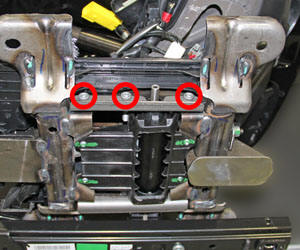

4. Remove the fasteners that secure the motor to the seat (torque 23 Nm).



5. Remove the seat track motor from the seat.

Installation procedure is the reverse of removal.
