Tesla Model X: Duct - HEPA Filter (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Thermal Management / Duct - HEPA Filter (Remove and Replace)

Removal

  1. Remove the HEPA filter housing (refer to procedure).
  2. Remove the push clips that secure the RH side of the cowl screen panel. Carefully lift up the RH side of the cowl screen panel for access.
  3. Remove the push clip that secures the HEPA filter duct to the body of the vehicle.

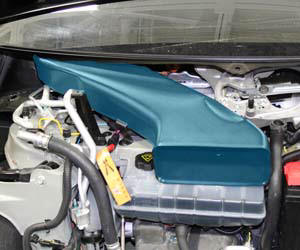

  4. Remove the HEPA filter duct.

    Note: Components have been removed in this graphic to aid clarity.

     Duct - HEPA Filter (Remove and Replace)

Installation

Installation procedure is the reverse of removal.
